API函数的调用过程（3环部分）

1、Windows API

1.1 Application Programming Interface，简称 API 函数。

1.2 Windows有多少个API?

主要是存放在 C:\WINDOWS\system32 下面所有的dll

1.3 几个重要的DLL

Kernel32.dll：最核心的功能模块，比如管理内存、进程和线程相关的函数等

User32.dll：是Windows用户界面相关应用程序接口,如创建窗口和发送消息等

GDI32.dll：全称是Graphical Device Interface(图形设备接口),包含用于画图和显示文本的函数.比如要显示一个程序窗口，就调用了其中的函数来画这个窗口

Ntdll.dll：大多数API都会通过这个DLL进入内核(0环)

kernelbase：函数api作中转的

2、分析ReadProcessMemory

用IDA打开Kernel32.dll，找到ReadProcessMemory函数。win7为例

整个路线是：

用户程序.exe&ReadProcessMemory

->kernel32&ReadProcessMemory

->kernelbase&ReadProcessMemory

->ntdll&NtReadVirtualMemory

->ntdll&KiFastSystemCall—sysenter

最后这里进入0环老系统老cpu走中断门int 2e，在新系统新cpu里这里进入后则是KiFastCallEntry

[!NOTE]

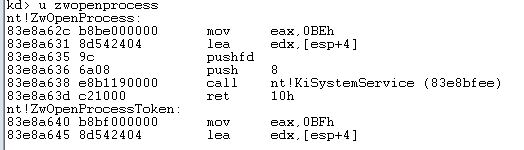

注意：当前的ntdll函数是nt前缀开头，如果是zw开头，则会先走KiSystemService函数，然后在进入KiFastCallEntry2

API函数的调用过程(3环进0环)

1、_KUSER_SHARED_DATA

在 User 层和 Kernel 层分别定义了一个 KUSER_SHARED_DATA 结构区域，用于 User 层和 Kernel 层共享某些数据
它们使用固定的地址值映射，_KUSER_SHARED_DATA 结构区域在 User 和 Kernel 层地址分别为

1 2	User 层地址为：0x7ffe0000 Kernnel 层地址为：0xffdf0000

[!NOTE]

特别说明：
虽然指向的是同一个物理页，但在User 层是只读的，在Kernnel层是可写的.

2、0x7FFE0300

当通过eax=1来执行cpuid指令时，处理器的特征信息被放在ecx和edx寄存器中，其中edx包含了一个SEP位（11位），该位指明了当前处理器知否支持

sysenter/sysexit指令

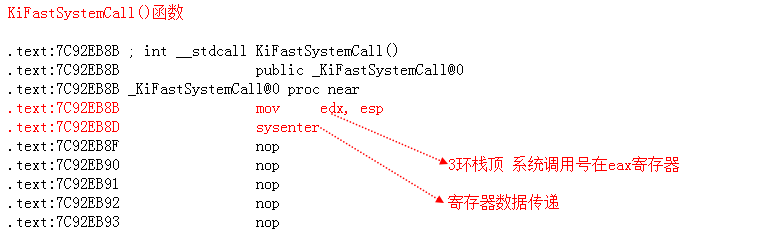

支持：ntdll.dll!KiFastSystemCall()

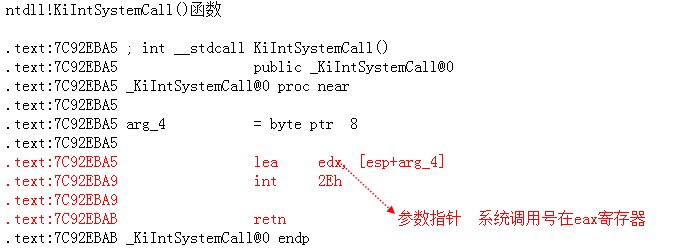

不支持：ntdll.dll!KiIntSystemCall()

3、进0环需要更改哪些寄存器？

CS的权限由3变为0 意味着需要新的CS
SS与CS的权限永远一致需要新的SS

权限发生切换的时候，堆栈也一定会切换，需要新的ESP
进0环后代码的位置，需要EIP

4、中断门进0环

4.1 INT 0x2E进0环

步骤一：在IDT表中找到0x2E号门描述符

步骤二：分析CS/SS/ESP/EIP的来源

步骤三：分析EIP是什么

5、快速调用进0环

中断门进0环，需要的CS、EIP在IDT表中，需要查内存(SS与ESP由TSS提供)

CPU如果支持sysenter指令时，操作系统会提前将CS/SS/ESP/EIP的值存储在MSR寄存器中，sysenter指令执行时，CPU会将MSR寄存器中的值直接写入相关寄存器，没有读内存的过程，所以叫快速调用

5.1 sysenter进0环

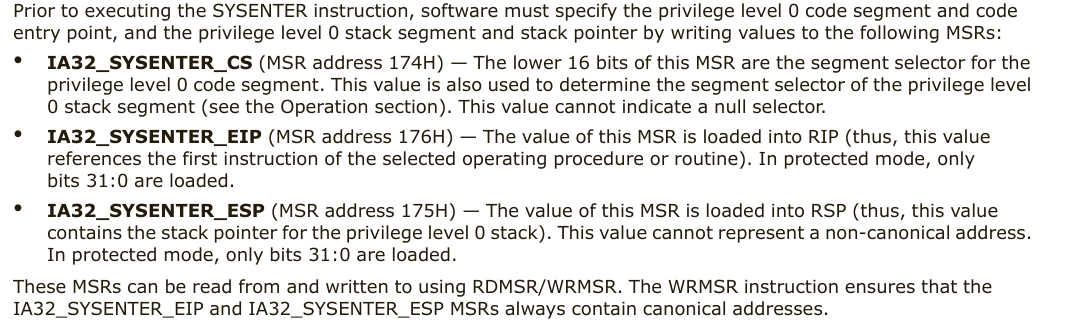

在执行sysenter指令之前，操作系统必须指定0环的CS段、SS段、EIP以及ESP

MSR	地址
IA32_SYSENTER_CS	174H
IA32_SYSENTER_ESP	175H
IA32_SYSENTER_EIP	176H

RDMSR/WRMST来进行读写（操作系统使用WRMST写该寄存器）:

kd> rdmsr 174   //查看CS
kd> rdmsr 175   //查看ESP
kd> rdmsr 176   //查看EIP

具体参考intel白皮书：第二卷

6、总结

6.1 API通过中断门进0环

固定中断号为0x2E
CS/EIP由门描述符提供 ESP/SS由TSS提供
进入0环后执行的内核函数：NT!KiSystemService

6.2 API通过sysenter指令进0环

CS/ESP/EIP由MSR寄存器提供(SS是算出来的)
进入0环后执行的内核函数：NT!KiFastCallEntry

内核模块：ntoskrnl.exe/ntkrnlpa.exe

进0环前保存现场

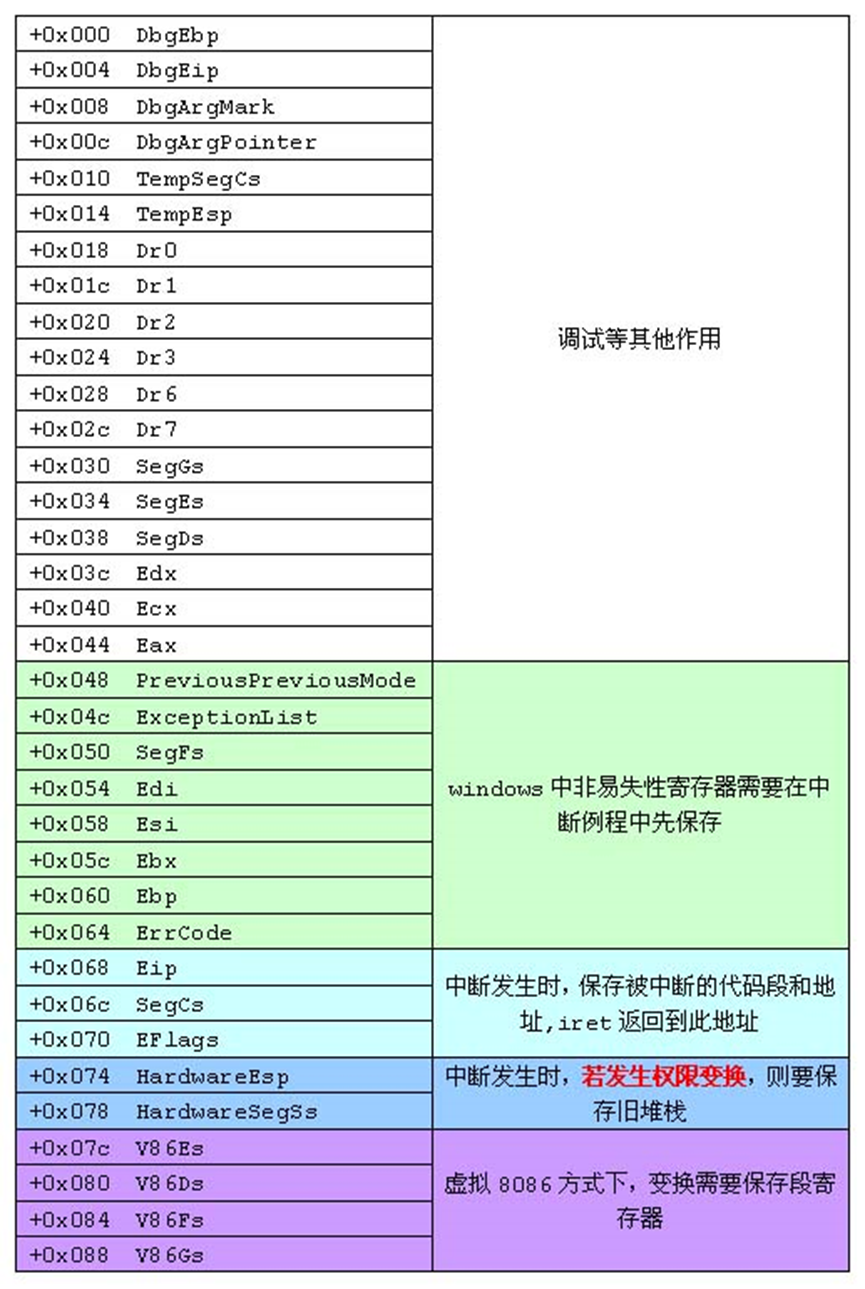

_Trap_Frame结构

typedef struct _KTRAP_FRAME {


//
//  Following 4 values are only used and defined for DBG systems,
//  but are always allocated to make switching from DBG to non-DBG
//  and back quicker.  They are not DEVL because they have a non-0
//  performance impact.
//

0x000    ULONG   DbgEbp;         // Copy of User EBP set up so KB will work.
0x004    ULONG   DbgEip;         // EIP of caller to system call, again, for KB.
0x008    ULONG   DbgArgMark;     // Marker to show no args here.
0x00c    ULONG   DbgArgPointer;  // Pointer to the actual args

//
//  Temporary values used when frames are edited.
//
//
//  NOTE:   Any code that want's ESP must materialize it, since it
//          is not stored in the frame for kernel mode callers.
//
//          And code that sets ESP in a KERNEL mode frame, must put
//          the new value in TempEsp, make sure that TempSegCs holds
//          the real SegCs value, and put a special marker value into SegCs.
//

0x010    ULONG   TempSegCs;
0x014    ULONG   TempEsp;

//
//  Debug registers.
//

0x018    ULONG   Dr0;
0x01c    ULONG   Dr1;
0x020    ULONG   Dr2;
0x024    ULONG   Dr3;
0x028    ULONG   Dr6;
0x02c    ULONG   Dr7;

//
//  Segment registers
//

0x030    ULONG   SegGs;
0x034    ULONG   SegEs;
0x038    ULONG   SegDs;

//
//  Volatile registers
//

0x03c    ULONG   Edx;
0x040    ULONG   Ecx;
0x044    ULONG   Eax;

//
//  Nesting state, not part of context record
//

0x048    ULONG   PreviousPreviousMode;

0x04c    PEXCEPTION_REGISTRATION_RECORD ExceptionList;
                                            // Trash if caller was user mode.
                                            // Saved exception list if caller
                                            // was kernel mode or we're in
                                            // an interrupt.

//
//  FS is TIB/PCR pointer, is here to make save sequence easy
//
0x050    ULONG   SegFs;
//
//  Non-volatile registers
//
0x054    ULONG   Edi;
0x058    ULONG   Esi;
0x05c    ULONG   Ebx;
0x060    ULONG   Ebp;
//
//  Control registers
//
0x064    ULONG   ErrCode;
0x068    ULONG   Eip;
0x06c    ULONG   SegCs;
0x070    ULONG   EFlags;
0x074    ULONG   HardwareEsp;    // WARNING - segSS:esp are only here for stacks
0x078    ULONG   HardwareSegSs;  // that involve a ring transition.
0x07c    ULONG   V86Es;          // these will be present for all transitions from
0x080    ULONG   V86Ds;          // V86 mode
0x084    ULONG   V86Fs;
0x08c    ULONG   V86Gs;
} KTRAP_FRAME;

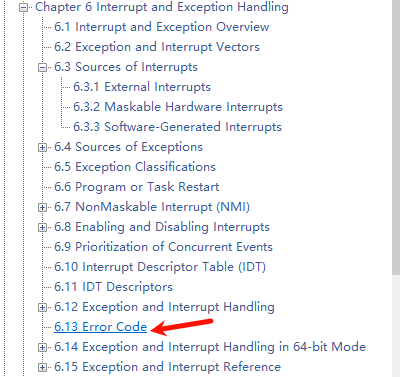

其中0x064 ULONG ErrCode;参考白皮书第三卷

_ETHREAD结构

nt!_ETHREAD
   +0x000 Tcb              : _KTHREAD
   +0x200 CreateTime       : _LARGE_INTEGER
   +0x208 ExitTime         : _LARGE_INTEGER
   +0x208 KeyedWaitChain   : _LIST_ENTRY
   +0x210 ExitStatus       : Int4B
   +0x214 PostBlockList    : _LIST_ENTRY
   +0x214 ForwardLinkShadow : Ptr32 Void
   +0x218 StartAddress     : Ptr32 Void
   +0x21c TerminationPort  : Ptr32 _TERMINATION_PORT
   +0x21c ReaperLink       : Ptr32 _ETHREAD
   +0x21c KeyedWaitValue   : Ptr32 Void
   +0x220 ActiveTimerListLock : Uint4B
   +0x224 ActiveTimerListHead : _LIST_ENTRY
   +0x22c Cid              : _CLIENT_ID
   +0x234 KeyedWaitSemaphore : _KSEMAPHORE
   +0x234 AlpcWaitSemaphore : _KSEMAPHORE
   +0x248 ClientSecurity   : _PS_CLIENT_SECURITY_CONTEXT
   +0x24c IrpList          : _LIST_ENTRY
   +0x254 TopLevelIrp      : Uint4B
   +0x258 DeviceToVerify   : Ptr32 _DEVICE_OBJECT
   +0x25c CpuQuotaApc      : Ptr32 _PSP_CPU_QUOTA_APC
   +0x260 Win32StartAddress : Ptr32 Void
   +0x264 LegacyPowerObject : Ptr32 Void
   +0x268 ThreadListEntry  : _LIST_ENTRY
   +0x270 RundownProtect   : _EX_RUNDOWN_REF
   +0x274 ThreadLock       : _EX_PUSH_LOCK
   +0x278 ReadClusterSize  : Uint4B
   +0x27c MmLockOrdering   : Int4B
   +0x280 CrossThreadFlags : Uint4B
   +0x280 Terminated       : Pos 0, 1 Bit
   +0x280 ThreadInserted   : Pos 1, 1 Bit
   +0x280 HideFromDebugger : Pos 2, 1 Bit
   +0x280 ActiveImpersonationInfo : Pos 3, 1 Bit
   +0x280 Reserved         : Pos 4, 1 Bit
   +0x280 HardErrorsAreDisabled : Pos 5, 1 Bit
   +0x280 BreakOnTermination : Pos 6, 1 Bit
   +0x280 SkipCreationMsg  : Pos 7, 1 Bit
   +0x280 SkipTerminationMsg : Pos 8, 1 Bit
   +0x280 CopyTokenOnOpen  : Pos 9, 1 Bit
   +0x280 ThreadIoPriority : Pos 10, 3 Bits
   +0x280 ThreadPagePriority : Pos 13, 3 Bits
   +0x280 RundownFail      : Pos 16, 1 Bit
   +0x280 NeedsWorkingSetAging : Pos 17, 1 Bit
   +0x284 SameThreadPassiveFlags : Uint4B
   +0x284 ActiveExWorker   : Pos 0, 1 Bit
   +0x284 ExWorkerCanWaitUser : Pos 1, 1 Bit
   +0x284 MemoryMaker      : Pos 2, 1 Bit
   +0x284 ClonedThread     : Pos 3, 1 Bit
   +0x284 KeyedEventInUse  : Pos 4, 1 Bit
   +0x284 RateApcState     : Pos 5, 2 Bits
   +0x284 SelfTerminate    : Pos 7, 1 Bit
   +0x288 SameThreadApcFlags : Uint4B
   +0x288 Spare            : Pos 0, 1 Bit
   +0x288 StartAddressInvalid : Pos 1, 1 Bit
   +0x288 EtwPageFaultCalloutActive : Pos 2, 1 Bit
   +0x288 OwnsProcessWorkingSetExclusive : Pos 3, 1 Bit
   +0x288 OwnsProcessWorkingSetShared : Pos 4, 1 Bit
   +0x288 OwnsSystemCacheWorkingSetExclusive : Pos 5, 1 Bit
   +0x288 OwnsSystemCacheWorkingSetShared : Pos 6, 1 Bit
   +0x288 OwnsSessionWorkingSetExclusive : Pos 7, 1 Bit
   +0x289 OwnsSessionWorkingSetShared : Pos 0, 1 Bit
   +0x289 OwnsProcessAddressSpaceExclusive : Pos 1, 1 Bit
   +0x289 OwnsProcessAddressSpaceShared : Pos 2, 1 Bit
   +0x289 SuppressSymbolLoad : Pos 3, 1 Bit
   +0x289 Prefetching      : Pos 4, 1 Bit
   +0x289 OwnsDynamicMemoryShared : Pos 5, 1 Bit
   +0x289 OwnsChangeControlAreaExclusive : Pos 6, 1 Bit
   +0x289 OwnsChangeControlAreaShared : Pos 7, 1 Bit
   +0x28a OwnsPagedPoolWorkingSetExclusive : Pos 0, 1 Bit
   +0x28a OwnsPagedPoolWorkingSetShared : Pos 1, 1 Bit
   +0x28a OwnsSystemPtesWorkingSetExclusive : Pos 2, 1 Bit
   +0x28a OwnsSystemPtesWorkingSetShared : Pos 3, 1 Bit
   +0x28a TrimTrigger      : Pos 4, 2 Bits
   +0x28a Spare1           : Pos 6, 2 Bits
   +0x28b PriorityRegionActive : UChar
   +0x28c CacheManagerActive : UChar
   +0x28d DisablePageFaultClustering : UChar
   +0x28e ActiveFaultCount : UChar
   +0x28f LockOrderState   : UChar
   +0x290 AlpcMessageId    : Uint4B
   +0x294 AlpcMessage      : Ptr32 Void
   +0x294 AlpcReceiveAttributeSet : Uint4B
   +0x298 AlpcWaitListEntry : _LIST_ENTRY
   +0x2a0 CacheManagerCount : Uint4B
   +0x2a4 IoBoostCount     : Uint4B
   +0x2a8 IrpListLock      : Uint4B
   +0x2ac ReservedForSynchTracking : Ptr32 Void
   +0x2b0 CmCallbackListHead : _SINGLE_LIST_ENTRY

_KTHREAD结构

kd> dt _KTHREAD
nt!_KTHREAD
   +0x000 Header           : _DISPATCHER_HEADER
   +0x010 CycleTime        : Uint8B
   +0x018 HighCycleTime    : Uint4B
   +0x020 QuantumTarget    : Uint8B
   +0x028 InitialStack     : Ptr32 Void
   +0x02c StackLimit       : Ptr32 Void
   +0x030 KernelStack      : Ptr32 Void
   +0x034 ThreadLock       : Uint4B
   +0x038 WaitRegister     : _KWAIT_STATUS_REGISTER
   +0x039 Running          : UChar
   +0x03a Alerted          : [2] UChar
   +0x03c KernelStackResident : Pos 0, 1 Bit
   +0x03c ReadyTransition  : Pos 1, 1 Bit
   +0x03c ProcessReadyQueue : Pos 2, 1 Bit
   +0x03c WaitNext         : Pos 3, 1 Bit
   +0x03c SystemAffinityActive : Pos 4, 1 Bit
   +0x03c Alertable        : Pos 5, 1 Bit
   +0x03c GdiFlushActive   : Pos 6, 1 Bit
   +0x03c UserStackWalkActive : Pos 7, 1 Bit
   +0x03c ApcInterruptRequest : Pos 8, 1 Bit
   +0x03c ForceDeferSchedule : Pos 9, 1 Bit
   +0x03c QuantumEndMigrate : Pos 10, 1 Bit
   +0x03c UmsDirectedSwitchEnable : Pos 11, 1 Bit
   +0x03c TimerActive      : Pos 12, 1 Bit
   +0x03c SystemThread     : Pos 13, 1 Bit
   +0x03c Reserved         : Pos 14, 18 Bits
   +0x03c MiscFlags        : Int4B
   +0x040 ApcState         : _KAPC_STATE
   +0x040 ApcStateFill     : [23] UChar
   +0x057 Priority         : Char
   +0x058 NextProcessor    : Uint4B
   +0x05c DeferredProcessor : Uint4B
   +0x060 ApcQueueLock     : Uint4B
   +0x064 ContextSwitches  : Uint4B
   +0x068 State            : UChar
   +0x069 NpxState         : Char
   +0x06a WaitIrql         : UChar
   +0x06b WaitMode         : Char
   +0x06c WaitStatus       : Int4B
   +0x070 WaitBlockList    : Ptr32 _KWAIT_BLOCK
   +0x074 WaitListEntry    : _LIST_ENTRY
   +0x074 SwapListEntry    : _SINGLE_LIST_ENTRY
   +0x07c Queue            : Ptr32 _KQUEUE
   +0x080 WaitTime         : Uint4B
   +0x084 KernelApcDisable : Int2B
   +0x086 SpecialApcDisable : Int2B
   +0x084 CombinedApcDisable : Uint4B
   +0x088 Teb              : Ptr32 Void
   +0x090 Timer            : _KTIMER
   +0x0b8 AutoAlignment    : Pos 0, 1 Bit
   +0x0b8 DisableBoost     : Pos 1, 1 Bit
   +0x0b8 EtwStackTraceApc1Inserted : Pos 2, 1 Bit
   +0x0b8 EtwStackTraceApc2Inserted : Pos 3, 1 Bit
   +0x0b8 CalloutActive    : Pos 4, 1 Bit
   +0x0b8 ApcQueueable     : Pos 5, 1 Bit
   +0x0b8 EnableStackSwap  : Pos 6, 1 Bit
   +0x0b8 GuiThread        : Pos 7, 1 Bit
   +0x0b8 UmsPerformingSyscall : Pos 8, 1 Bit
   +0x0b8 VdmSafe          : Pos 9, 1 Bit
   +0x0b8 UmsDispatched    : Pos 10, 1 Bit
   +0x0b8 ReservedFlags    : Pos 11, 21 Bits
   +0x0b8 ThreadFlags      : Int4B
   +0x0bc ServiceTable     : Ptr32 Void
   +0x0c0 WaitBlock        : [4] _KWAIT_BLOCK
   +0x120 QueueListEntry   : _LIST_ENTRY
   +0x128 TrapFrame        : Ptr32 _KTRAP_FRAME
   +0x12c FirstArgument    : Ptr32 Void
   +0x130 CallbackStack    : Ptr32 Void
   +0x130 CallbackDepth    : Uint4B
   +0x134 ApcStateIndex    : UChar
   +0x135 BasePriority     : Char
   +0x136 PriorityDecrement : Char
   +0x136 ForegroundBoost  : Pos 0, 4 Bits
   +0x136 UnusualBoost     : Pos 4, 4 Bits
   +0x137 Preempted        : UChar
   +0x138 AdjustReason     : UChar
   +0x139 AdjustIncrement  : Char
   +0x13a PreviousMode     : Char
   +0x13b Saturation       : Char
   +0x13c SystemCallNumber : Uint4B
   +0x140 FreezeCount      : Uint4B
   +0x144 UserAffinity     : _GROUP_AFFINITY
   +0x150 Process          : Ptr32 _KPROCESS
   +0x154 Affinity         : _GROUP_AFFINITY
   +0x160 IdealProcessor   : Uint4B
   +0x164 UserIdealProcessor : Uint4B
   +0x168 ApcStatePointer  : [2] Ptr32 _KAPC_STATE
   +0x170 SavedApcState    : _KAPC_STATE
   +0x170 SavedApcStateFill : [23] UChar
   +0x187 WaitReason       : UChar
   +0x188 SuspendCount     : Char
   +0x189 Spare1           : Char
   +0x18a OtherPlatformFill : UChar
   +0x18c Win32Thread      : Ptr32 Void
   +0x190 StackBase        : Ptr32 Void
   +0x194 SuspendApc       : _KAPC
   +0x194 SuspendApcFill0  : [1] UChar
   +0x195 ResourceIndex    : UChar
   +0x194 SuspendApcFill1  : [3] UChar
   +0x197 QuantumReset     : UChar
   +0x194 SuspendApcFill2  : [4] UChar
   +0x198 KernelTime       : Uint4B
   +0x194 SuspendApcFill3  : [36] UChar
   +0x1b8 WaitPrcb         : Ptr32 _KPRCB
   +0x194 SuspendApcFill4  : [40] UChar
   +0x1bc LegoData         : Ptr32 Void
   +0x194 SuspendApcFill5  : [47] UChar
   +0x1c3 LargeStack       : UChar
   +0x1c4 UserTime         : Uint4B
   +0x1c8 SuspendSemaphore : _KSEMAPHORE
   +0x1c8 SuspendSemaphorefill : [20] UChar
   +0x1dc SListFaultCount  : Uint4B
   +0x1e0 ThreadListEntry  : _LIST_ENTRY
   +0x1e8 MutantListHead   : _LIST_ENTRY
   +0x1f0 SListFaultAddress : Ptr32 Void
   +0x1f4 ThreadCounters   : Ptr32 _KTHREAD_COUNTERS
   +0x1f8 XStateSave       : Ptr32 _XSTATE_SAVE

_KPCR结构

nt!_KPCR
   +0x000 NtTib            : _NT_TIB
   +0x000 Used_ExceptionList : Ptr32 _EXCEPTION_REGISTRATION_RECORD
   +0x004 Used_StackBase   : Ptr32 Void
   +0x008 Spare2           : Ptr32 Void
   +0x00c TssCopy          : Ptr32 Void
   +0x010 ContextSwitches  : Uint4B
   +0x014 SetMemberCopy    : Uint4B
   +0x018 Used_Self        : Ptr32 Void
   +0x01c SelfPcr          : Ptr32 _KPCR
   +0x020 Prcb             : Ptr32 _KPRCB
   +0x024 Irql             : UChar
   +0x028 IRR              : Uint4B
   +0x02c IrrActive        : Uint4B
   +0x030 IDR              : Uint4B
   +0x034 KdVersionBlock   : Ptr32 Void
   +0x038 IDT              : Ptr32 _KIDTENTRY
   +0x03c GDT              : Ptr32 _KGDTENTRY
   +0x040 TSS              : Ptr32 _KTSS
   +0x044 MajorVersion     : Uint2B
   +0x046 MinorVersion     : Uint2B
   +0x048 SetMember        : Uint4B
   +0x04c StallScaleFactor : Uint4B
   +0x050 SpareUnused      : UChar
   +0x051 Number           : UChar
   +0x052 Spare0           : UChar
   +0x053 SecondLevelCacheAssociativity : UChar
   +0x054 VdmAlert         : Uint4B
   +0x058 KernelReserved   : [14] Uint4B
   +0x090 SecondLevelCacheSize : Uint4B
   +0x094 HalReserved      : [16] Uint4B
   +0x0d4 InterruptMode    : Uint4B
   +0x0d8 Spare1           : UChar
   +0x0dc KernelReserved2  : [17] Uint4B
   +0x120 PrcbData         : _KPRCB

_NT_TIB结构

nt!_NT_TIB
   +0x000 ExceptionList    : Ptr32 _EXCEPTION_REGISTRATION_RECORD
   +0x004 StackBase        : Ptr32 Void
   +0x008 StackLimit       : Ptr32 Void
   +0x00c SubSystemTib     : Ptr32 Void
   +0x010 FiberData        : Ptr32 Void
   +0x010 Version          : Uint4B
   +0x014 ArbitraryUserPointer : Ptr32 Void
   +0x018 Self             : Ptr32 _NT_TIB

_KPRCB结构

nt!_KPRCB
   +0x000 MinorVersion     : Uint2B
   +0x002 MajorVersion     : Uint2B
   +0x004 CurrentThread    : Ptr32 _KTHREAD
   +0x008 NextThread       : Ptr32 _KTHREAD
   +0x00c IdleThread       : Ptr32 _KTHREAD
   +0x010 LegacyNumber     : UChar
   +0x011 NestingLevel     : UChar
   +0x012 BuildType        : Uint2B
   +0x014 CpuType          : Char
   +0x015 CpuID            : Char
   +0x016 CpuStep          : Uint2B
   +0x016 CpuStepping      : UChar
   +0x017 CpuModel         : UChar
   +0x018 ProcessorState   : _KPROCESSOR_STATE
   +0x338 KernelReserved   : [16] Uint4B
   +0x378 HalReserved      : [16] Uint4B
   +0x3b8 CFlushSize       : Uint4B
   +0x3bc CoresPerPhysicalProcessor : UChar
   +0x3bd LogicalProcessorsPerCore : UChar
   +0x3be PrcbPad0         : [2] UChar
   +0x3c0 MHz              : Uint4B
   +0x3c4 CpuVendor        : UChar
   +0x3c5 GroupIndex       : UChar
   +0x3c6 Group            : Uint2B
   +0x3c8 GroupSetMember   : Uint4B
   +0x3cc Number           : Uint4B
   +0x3d0 PrcbPad1         : [72] UChar
   +0x418 LockQueue        : [17] _KSPIN_LOCK_QUEUE
   +0x4a0 NpxThread        : Ptr32 _KTHREAD
   +0x4a4 InterruptCount   : Uint4B
   +0x4a8 KernelTime       : Uint4B
   +0x4ac UserTime         : Uint4B
   +0x4b0 DpcTime          : Uint4B
   +0x4b4 DpcTimeCount     : Uint4B
   +0x4b8 InterruptTime    : Uint4B
   +0x4bc AdjustDpcThreshold : Uint4B
   +0x4c0 PageColor        : Uint4B
   +0x4c4 DebuggerSavedIRQL : UChar
   +0x4c5 NodeColor        : UChar
   +0x4c6 PrcbPad20        : [2] UChar
   +0x4c8 NodeShiftedColor : Uint4B
   +0x4cc ParentNode       : Ptr32 _KNODE
   +0x4d0 SecondaryColorMask : Uint4B
   +0x4d4 DpcTimeLimit     : Uint4B
   +0x4d8 PrcbPad21        : [2] Uint4B
   +0x4e0 CcFastReadNoWait : Uint4B
   +0x4e4 CcFastReadWait   : Uint4B
   +0x4e8 CcFastReadNotPossible : Uint4B
   +0x4ec CcCopyReadNoWait : Uint4B
   +0x4f0 CcCopyReadWait   : Uint4B
   +0x4f4 CcCopyReadNoWaitMiss : Uint4B
   +0x4f8 MmSpinLockOrdering : Int4B
   +0x4fc IoReadOperationCount : Int4B
   +0x500 IoWriteOperationCount : Int4B
   +0x504 IoOtherOperationCount : Int4B
   +0x508 IoReadTransferCount : _LARGE_INTEGER
   +0x510 IoWriteTransferCount : _LARGE_INTEGER
   +0x518 IoOtherTransferCount : _LARGE_INTEGER
   +0x520 CcFastMdlReadNoWait : Uint4B
   +0x524 CcFastMdlReadWait : Uint4B
   +0x528 CcFastMdlReadNotPossible : Uint4B
   +0x52c CcMapDataNoWait  : Uint4B
   +0x530 CcMapDataWait    : Uint4B
   +0x534 CcPinMappedDataCount : Uint4B
   +0x538 CcPinReadNoWait  : Uint4B
   +0x53c CcPinReadWait    : Uint4B
   +0x540 CcMdlReadNoWait  : Uint4B
   +0x544 CcMdlReadWait    : Uint4B
   +0x548 CcLazyWriteHotSpots : Uint4B
   +0x54c CcLazyWriteIos   : Uint4B
   +0x550 CcLazyWritePages : Uint4B
   +0x554 CcDataFlushes    : Uint4B
   +0x558 CcDataPages      : Uint4B
   +0x55c CcLostDelayedWrites : Uint4B
   +0x560 CcFastReadResourceMiss : Uint4B
   +0x564 CcCopyReadWaitMiss : Uint4B
   +0x568 CcFastMdlReadResourceMiss : Uint4B
   +0x56c CcMapDataNoWaitMiss : Uint4B
   +0x570 CcMapDataWaitMiss : Uint4B
   +0x574 CcPinReadNoWaitMiss : Uint4B
   +0x578 CcPinReadWaitMiss : Uint4B
   +0x57c CcMdlReadNoWaitMiss : Uint4B
   +0x580 CcMdlReadWaitMiss : Uint4B
   +0x584 CcReadAheadIos   : Uint4B
   +0x588 KeAlignmentFixupCount : Uint4B
   +0x58c KeExceptionDispatchCount : Uint4B
   +0x590 KeSystemCalls    : Uint4B
   +0x594 AvailableTime    : Uint4B
   +0x598 PrcbPad22        : [2] Uint4B
   +0x5a0 PPLookasideList  : [16] _PP_LOOKASIDE_LIST
   +0x620 PPNPagedLookasideList : [32] _GENERAL_LOOKASIDE_POOL
   +0xf20 PPPagedLookasideList : [32] _GENERAL_LOOKASIDE_POOL
   +0x1820 PacketBarrier    : Uint4B
   +0x1824 ReverseStall     : Int4B
   +0x1828 IpiFrame         : Ptr32 Void
   +0x182c PrcbPad3         : [52] UChar
   +0x1860 CurrentPacket    : [3] Ptr32 Void
   +0x186c TargetSet        : Uint4B
   +0x1870 WorkerRoutine    : Ptr32     void
   +0x1874 IpiFrozen        : Uint4B
   +0x1878 PrcbPad4         : [40] UChar
   +0x18a0 RequestSummary   : Uint4B
   +0x18a4 SignalDone       : Ptr32 _KPRCB
   +0x18a8 PrcbPad50        : [56] UChar
   +0x18e0 DpcData          : [2] _KDPC_DATA
   +0x1908 DpcStack         : Ptr32 Void
   +0x190c MaximumDpcQueueDepth : Int4B
   +0x1910 DpcRequestRate   : Uint4B
   +0x1914 MinimumDpcRate   : Uint4B
   +0x1918 DpcLastCount     : Uint4B
   +0x191c PrcbLock         : Uint4B
   +0x1920 DpcGate          : _KGATE
   +0x1930 ThreadDpcEnable  : UChar
   +0x1931 QuantumEnd       : UChar
   +0x1932 DpcRoutineActive : UChar
   +0x1933 IdleSchedule     : UChar
   +0x1934 DpcRequestSummary : Int4B
   +0x1934 DpcRequestSlot   : [2] Int2B
   +0x1934 NormalDpcState   : Int2B
   +0x1936 DpcThreadActive  : Pos 0, 1 Bit
   +0x1936 ThreadDpcState   : Int2B
   +0x1938 TimerHand        : Uint4B
   +0x193c LastTick         : Uint4B
   +0x1940 MasterOffset     : Int4B
   +0x1944 PrcbPad41        : [2] Uint4B
   +0x194c PeriodicCount    : Uint4B
   +0x1950 PeriodicBias     : Uint4B
   +0x1958 TickOffset       : Uint8B
   +0x1960 TimerTable       : _KTIMER_TABLE
   +0x31a0 CallDpc          : _KDPC
   +0x31c0 ClockKeepAlive   : Int4B
   +0x31c4 ClockCheckSlot   : UChar
   +0x31c5 ClockPollCycle   : UChar
   +0x31c6 PrcbPad6         : [2] UChar
   +0x31c8 DpcWatchdogPeriod : Int4B
   +0x31cc DpcWatchdogCount : Int4B
   +0x31d0 ThreadWatchdogPeriod : Int4B
   +0x31d4 ThreadWatchdogCount : Int4B
   +0x31d8 KeSpinLockOrdering : Int4B
   +0x31dc PrcbPad70        : [1] Uint4B
   +0x31e0 WaitListHead     : _LIST_ENTRY
   +0x31e8 WaitLock         : Uint4B
   +0x31ec ReadySummary     : Uint4B
   +0x31f0 QueueIndex       : Uint4B
   +0x31f4 DeferredReadyListHead : _SINGLE_LIST_ENTRY
   +0x31f8 StartCycles      : Uint8B
   +0x3200 CycleTime        : Uint8B
   +0x3208 HighCycleTime    : Uint4B
   +0x320c PrcbPad71        : Uint4B
   +0x3210 PrcbPad72        : [2] Uint8B
   +0x3220 DispatcherReadyListHead : [32] _LIST_ENTRY
   +0x3320 ChainedInterruptList : Ptr32 Void
   +0x3324 LookasideIrpFloat : Int4B
   +0x3328 MmPageFaultCount : Int4B
   +0x332c MmCopyOnWriteCount : Int4B
   +0x3330 MmTransitionCount : Int4B
   +0x3334 MmCacheTransitionCount : Int4B
   +0x3338 MmDemandZeroCount : Int4B
   +0x333c MmPageReadCount  : Int4B
   +0x3340 MmPageReadIoCount : Int4B
   +0x3344 MmCacheReadCount : Int4B
   +0x3348 MmCacheIoCount   : Int4B
   +0x334c MmDirtyPagesWriteCount : Int4B
   +0x3350 MmDirtyWriteIoCount : Int4B
   +0x3354 MmMappedPagesWriteCount : Int4B
   +0x3358 MmMappedWriteIoCount : Int4B
   +0x335c CachedCommit     : Uint4B
   +0x3360 CachedResidentAvailable : Uint4B
   +0x3364 HyperPte         : Ptr32 Void
   +0x3368 PrcbPad8         : [4] UChar
   +0x336c VendorString     : [13] UChar
   +0x3379 InitialApicId    : UChar
   +0x337a LogicalProcessorsPerPhysicalProcessor : UChar
   +0x337b PrcbPad9         : [5] UChar
   +0x3380 FeatureBits      : Uint4B
   +0x3388 UpdateSignature  : _LARGE_INTEGER
   +0x3390 IsrTime          : Uint8B
   +0x3398 RuntimeAccumulation : Uint8B
   +0x33a0 PowerState       : _PROCESSOR_POWER_STATE
   +0x3468 DpcWatchdogDpc   : _KDPC
   +0x3488 DpcWatchdogTimer : _KTIMER
   +0x34b0 WheaInfo         : Ptr32 Void
   +0x34b4 EtwSupport       : Ptr32 Void
   +0x34b8 InterruptObjectPool : _SLIST_HEADER
   +0x34c0 HypercallPageList : _SLIST_HEADER
   +0x34c8 HypercallPageVirtual : Ptr32 Void
   +0x34cc VirtualApicAssist : Ptr32 Void
   +0x34d0 StatisticsPage   : Ptr32 Uint8B
   +0x34d4 RateControl      : Ptr32 Void
   +0x34d8 Cache            : [5] _CACHE_DESCRIPTOR
   +0x3514 CacheCount       : Uint4B
   +0x3518 CacheProcessorMask : [5] Uint4B
   +0x352c PackageProcessorSet : _KAFFINITY_EX
   +0x3538 PrcbPad91        : [1] Uint4B
   +0x353c CoreProcessorSet : Uint4B
   +0x3540 TimerExpirationDpc : _KDPC
   +0x3560 SpinLockAcquireCount : Uint4B
   +0x3564 SpinLockContentionCount : Uint4B
   +0x3568 SpinLockSpinCount : Uint4B
   +0x356c IpiSendRequestBroadcastCount : Uint4B
   +0x3570 IpiSendRequestRoutineCount : Uint4B
   +0x3574 IpiSendSoftwareInterruptCount : Uint4B
   +0x3578 ExInitializeResourceCount : Uint4B
   +0x357c ExReInitializeResourceCount : Uint4B
   +0x3580 ExDeleteResourceCount : Uint4B
   +0x3584 ExecutiveResourceAcquiresCount : Uint4B
   +0x3588 ExecutiveResourceContentionsCount : Uint4B
   +0x358c ExecutiveResourceReleaseExclusiveCount : Uint4B
   +0x3590 ExecutiveResourceReleaseSharedCount : Uint4B
   +0x3594 ExecutiveResourceConvertsCount : Uint4B
   +0x3598 ExAcqResExclusiveAttempts : Uint4B
   +0x359c ExAcqResExclusiveAcquiresExclusive : Uint4B
   +0x35a0 ExAcqResExclusiveAcquiresExclusiveRecursive : Uint4B
   +0x35a4 ExAcqResExclusiveWaits : Uint4B
   +0x35a8 ExAcqResExclusiveNotAcquires : Uint4B
   +0x35ac ExAcqResSharedAttempts : Uint4B
   +0x35b0 ExAcqResSharedAcquiresExclusive : Uint4B
   +0x35b4 ExAcqResSharedAcquiresShared : Uint4B
   +0x35b8 ExAcqResSharedAcquiresSharedRecursive : Uint4B
   +0x35bc ExAcqResSharedWaits : Uint4B
   +0x35c0 ExAcqResSharedNotAcquires : Uint4B
   +0x35c4 ExAcqResSharedStarveExclusiveAttempts : Uint4B
   +0x35c8 ExAcqResSharedStarveExclusiveAcquiresExclusive : Uint4B
   +0x35cc ExAcqResSharedStarveExclusiveAcquiresShared : Uint4B
   +0x35d0 ExAcqResSharedStarveExclusiveAcquiresSharedRecursive : Uint4B
   +0x35d4 ExAcqResSharedStarveExclusiveWaits : Uint4B
   +0x35d8 ExAcqResSharedStarveExclusiveNotAcquires : Uint4B
   +0x35dc ExAcqResSharedWaitForExclusiveAttempts : Uint4B
   +0x35e0 ExAcqResSharedWaitForExclusiveAcquiresExclusive : Uint4B
   +0x35e4 ExAcqResSharedWaitForExclusiveAcquiresShared : Uint4B
   +0x35e8 ExAcqResSharedWaitForExclusiveAcquiresSharedRecursive : Uint4B
   +0x35ec ExAcqResSharedWaitForExclusiveWaits : Uint4B
   +0x35f0 ExAcqResSharedWaitForExclusiveNotAcquires : Uint4B
   +0x35f4 ExSetResOwnerPointerExclusive : Uint4B
   +0x35f8 ExSetResOwnerPointerSharedNew : Uint4B
   +0x35fc ExSetResOwnerPointerSharedOld : Uint4B
   +0x3600 ExTryToAcqExclusiveAttempts : Uint4B
   +0x3604 ExTryToAcqExclusiveAcquires : Uint4B
   +0x3608 ExBoostExclusiveOwner : Uint4B
   +0x360c ExBoostSharedOwners : Uint4B
   +0x3610 ExEtwSynchTrackingNotificationsCount : Uint4B
   +0x3614 ExEtwSynchTrackingNotificationsAccountedCount : Uint4B
   +0x3618 Context          : Ptr32 _CONTEXT
   +0x361c ContextFlags     : Uint4B
   +0x3620 ExtendedState    : Ptr32 _XSAVE_AREA

查看CPU数量

1	kd> dd KeNumberProcessors

查看KPCR

kd> dd KiProcessorBlock  L2
83fb88c0  83f79d20 00000000

kd> dt _kpcr 83f79d20-120
nt!_KPCR
   +0x000 NtTib            : _NT_TIB
   +0x000 Used_ExceptionList : 0x83f760ac _EXCEPTION_REGISTRATION_RECORD
   +0x004 Used_StackBase   : (null)
   +0x008 Spare2           : (null)
   +0x00c TssCopy          : 0x801e4000 Void
   +0x010 ContextSwitches  : 0xbac4f
   +0x014 SetMemberCopy    : 1
   +0x018 Used_Self        : (null)
   +0x01c SelfPcr          : 0x83f79c00 _KPCR
   +0x020 Prcb             : 0x83f79d20 _KPRCB
   +0x024 Irql             : 0x1f ''
   +0x028 IRR              : 0
   +0x02c IrrActive        : 0
   +0x030 IDR              : 0xffffffff
   +0x034 KdVersionBlock   : 0x83f78c00 Void
   +0x038 IDT              : 0x80b99400 _KIDTENTRY
   +0x03c GDT              : 0x80b99000 _KGDTENTRY
   +0x040 TSS              : 0x801e4000 _KTSS
   +0x044 MajorVersion     : 1
   +0x046 MinorVersion     : 1
   +0x048 SetMember        : 1
   +0x04c StallScaleFactor : 0xa20
   +0x050 SpareUnused      : 0 ''
   +0x051 Number           : 0 ''
   +0x052 Spare0           : 0 ''
   +0x053 SecondLevelCacheAssociativity : 0 ''
   +0x054 VdmAlert         : 0
   +0x058 KernelReserved   : [14] 0
   +0x090 SecondLevelCacheSize : 0
   +0x094 HalReserved      : [16] 0x1000000
   +0x0d4 InterruptMode    : 0
   +0x0d8 Spare1           : 0 ''
   +0x0dc KernelReserved2  : [17] 0
   +0x120 PrcbData         : _KPRCB

系统服务表

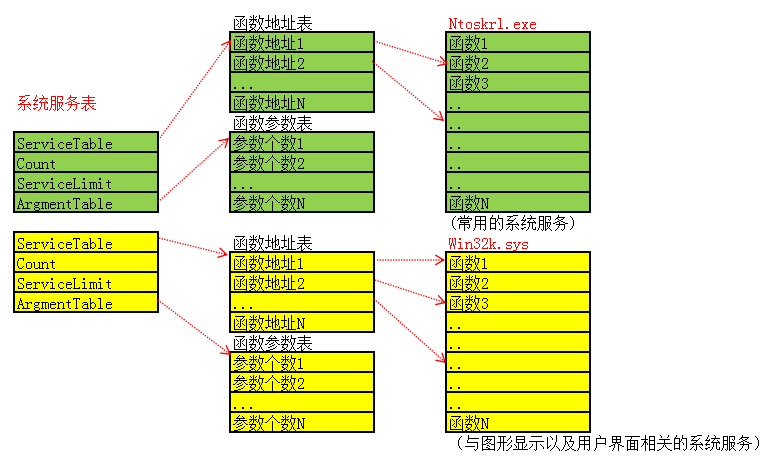

1、SystemServiceTable 系统服务表

2、SystemServiceTable 系统服务表位置

通过_KTHREAD+0xE0

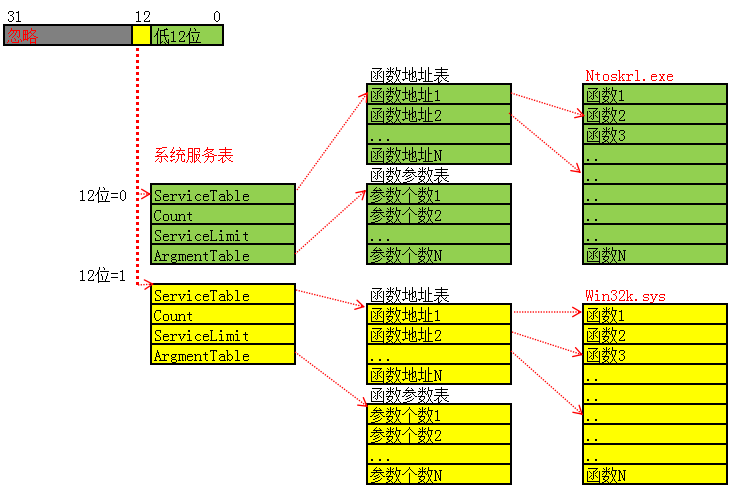

3、判断要调用的函数在哪个表

通过服务号

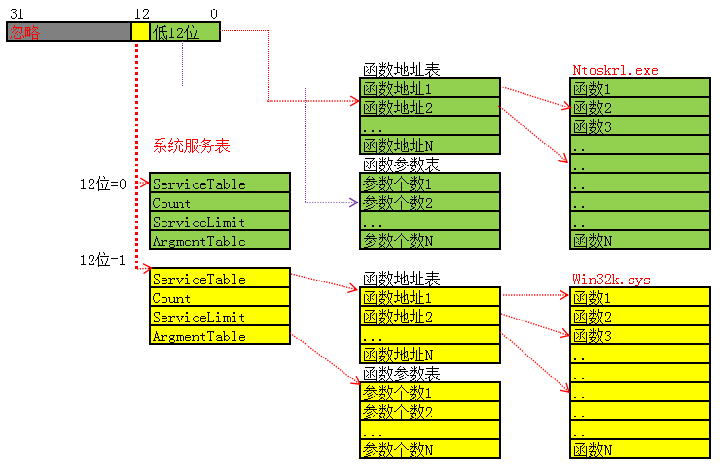

4、找到要执行的函数与参数个数

SSDT

1、SystemServiceTable 系统服务表

typedef struct _KSERVICE_TABLE_DESCRIPTOR {
    PULONG_PTR Base; 0x0 函数表
    PULONG Count; 0x4 统计这张表调用次数
    ULONG Limit; 0x8 函数总个数表
    PUCHAR Number; 0xc 函数参数个数表
} KSERVICE_TABLE_DESCRIPTOR

2、如何访问系统服务表呢？

SSDT 的全称是 System Services Descriptor Table，系统服务描述符表

1
2
3

kd> dd  KeServiceDescriptorTable(SSDT)导出的 声明一下就可以使用了

kd> dd  KeServiceDescriptorTableShadow(SSDT Shadow)未导出 需要用其他的方式来查找

[!NOTE]

KeServiceDescriptorTableShadow = KeServiceDescriptorTable + 0x40

案例

SSDTHOOK

Tool.h

#pragma once
#include <ntifs.h>
#include <ntstrsafe.h>
#include<ntimage.h>
NTSTATUS
MmCreateSection(
	OUT PVOID* SectionObject,
	IN ACCESS_MASK DesiredAccess,
	IN POBJECT_ATTRIBUTES ObjectAttributes OPTIONAL,
	IN PLARGE_INTEGER InputMaximumSize,
	IN ULONG SectionPageProtection,
	IN ULONG AllocationAttributes,
	IN HANDLE FileHandle OPTIONAL,
	IN PFILE_OBJECT FileObject OPTIONAL
);
PWCH getSystemNtDllPath();//拿到ntdll模块的路径

PUCHAR MapOfViewFile(PWCH path);

VOID unMapOfViewFile(PVOID mapBase);

ULONG64 exportFuntionByName(char* imageBuffer, char* funName);

Tool.c

#include "Tools.h"


PWCH getSystemNtDllPath() {
	PWCH sysPath = ExAllocatePool(PagedPool, PAGE_SIZE);
	memset(sysPath, 0, PAGE_SIZE);
	RtlStringCbPrintfW(sysPath, PAGE_SIZE, L"\\??\\%s\\system32\\ntdll.dll", SharedUserData->NtSystemRoot);
	return sysPath;
}

PUCHAR MapOfViewFile(PWCH path) {
	/*
	ZwCreateFile(
	_Out_ PHANDLE FileHandle,
	_In_ ACCESS_MASK DesiredAccess,
	_In_ POBJECT_ATTRIBUTES ObjectAttributes,
	_Out_ PIO_STATUS_BLOCK IoStatusBlock,
	_In_opt_ PLARGE_INTEGER AllocationSize,
	_In_ ULONG FileAttributes,
	_In_ ULONG ShareAccess,
	_In_ ULONG CreateDisposition,
	_In_ ULONG CreateOptions,
	_In_reads_bytes_opt_(EaLength) PVOID EaBuffer,
	_In_ ULONG EaLength
	);

	*/
	HANDLE fileHandle = NULL;

	UNICODE_STRING fileName = { 0 };
	RtlInitUnicodeString(&fileName, path);

	OBJECT_ATTRIBUTES ObjectAttributes;
	InitializeObjectAttributes(&ObjectAttributes, &fileName, OBJ_CASE_INSENSITIVE, NULL, NULL);

	IO_STATUS_BLOCK IoStatusBlock;
	NTSTATUS status = ZwCreateFile(&fileHandle, GENERIC_READ, &ObjectAttributes, &IoStatusBlock,
		NULL, FILE_ATTRIBUTE_NORMAL, FILE_SHARE_READ,
		FILE_OPEN, FILE_NON_DIRECTORY_FILE | FILE_SYNCHRONOUS_IO_NONALERT, NULL, NULL);
	if (!NT_SUCCESS(status))
	{
		ExFreePool(path);
		return 0;
	}
	PVOID hSection = NULL;
	OBJECT_ATTRIBUTES sectionAttr;
	InitializeObjectAttributes(&sectionAttr, NULL, OBJ_CASE_INSENSITIVE, NULL, NULL);
	LARGE_INTEGER InputMaximumSize = { 0 };
	status = MmCreateSection(&hSection, NULL, &sectionAttr, &InputMaximumSize, PAGE_EXECUTE_READWRITE, 0x1000000, fileHandle, NULL);
	if (!NT_SUCCESS(status))
	{
		ExFreePool(path);
		ZwClose(fileHandle);
		return 0;
	}

	PVOID mapBase = NULL;
	SIZE_T viewSize = { 0 };
	status = MmMapViewInSystemSpace(hSection, &mapBase, &viewSize); //将读取到的module映射进内核空间，相当于fileToImage

	ObDereferenceObject(hSection); //解引用当前hSection
	ZwClose(fileHandle);

	if (NT_SUCCESS(status))
	{
		return mapBase;

	}
}

VOID unMapOfViewFile(PVOID mapBase) {
	if (!mapBase) return;
	MmUnmapViewInSystemSpace(mapBase);
}

ULONG64 exportFuntionByName(char* imageBuffer, char* funName) {
	PIMAGE_DOS_HEADER pDos = (PIMAGE_DOS_HEADER)imageBuffer;
	PIMAGE_NT_HEADERS pNt = (PIMAGE_NT_HEADERS)((ULONG)pDos + (ULONG)pDos->e_lfanew);
	PIMAGE_DATA_DIRECTORY pDataDir = (PIMAGE_DATA_DIRECTORY)(&pNt->OptionalHeader.DataDirectory[0]);

	PIMAGE_EXPORT_DIRECTORY pExport = (PIMAGE_EXPORT_DIRECTORY)((ULONG)pDos + (ULONG)pDataDir->VirtualAddress);

	ULONG64 funcAddr = 0;
	for (SIZE_T i = 0;i < pExport->NumberOfNames;i++)
	{
		PULONG funAddrTable = (PULONG)((ULONG)pDos + (ULONG)pExport->AddressOfFunctions);
		PULONG funNameTable = (PULONG)((ULONG)pDos + (ULONG)pExport->AddressOfNames);
		PSHORT ord = (PULONG)((ULONG)pDos + (ULONG)pExport->AddressOfNameOrdinals);
		SIZE_T index = -1;
		PUCHAR name = (PUCHAR)((ULONG)pDos + (ULONG)(funNameTable[i]));
		if (strcmp(funName, name) == 0)
		{
			DbgBreakPoint();
			DbgPrintEx(77, 0, "[db]:name--%s\r\n", name);
			index = ord[i];
		}

		if (index != -1)
		{
			funcAddr = (ULONG)pDos + (ULONG)funAddrTable[index];
			break;
		}
	}
	if (!funcAddr)
	{
		KdPrint(("没有找到函数%s\r\n", funName));

	}
	else
	{
		KdPrint(("找到函数%s addr %p\r\n", funName, funcAddr));
	}

	return funcAddr;
}

ssdt.h

#pragma once
#include <ntifs.h>
#include"Tools.h"
#include <intrin.h>
typedef struct _KSERVICE_TABLE_DESCRIPTOR {
	PULONG_PTR Base;
	PULONG Count;
	ULONG Limit;
	PUCHAR Number;
} KSERVICE_TABLE_DESCRIPTOR;


typedef struct _SSDTable {
	KSERVICE_TABLE_DESCRIPTOR ssdt;
	KSERVICE_TABLE_DESCRIPTOR sssdt;

}SSDTable, * PSSDTable;



BOOLEAN SsdtInit(); //HOOK SSDT之前需要做的一些事情

VOID SsdtDestory(); //还原SSDT

PSSDTable getSSDT(); //获得SSDT表

ULONG getSSDTFuntionServiceIndex(char* funName); //通过函数名拿到服务号

ULONG_PTR SetSSDTHook(char* funName, ULONG_PTR newFunction);//HOOK SSDT
//关闭读写保护cr0寄存器
ULONG wpOff();

VOID wpOn(ULONG cr0);

ssdt.c

#include "ssdt.h"

PUCHAR gMapNtdll = NULL;
extern PSSDTable KeServiceDescriptorTable; //从内核里拿到全局变量KeServiceDescriptorTable 赋值给PSSDTable


BOOLEAN SsdtInit() {
	if (gMapNtdll) return TRUE;
	PWCH path = getSystemNtDllPath();
	DbgPrintEx(77, 0, "[db]:%S\r\n", path);
	gMapNtdll = MapOfViewFile(path);
	ExFreePool(path);
	return TRUE;
}


VOID SsdtDestory() {
	if (!gMapNtdll) return;
	unMapOfViewFile(gMapNtdll);
	gMapNtdll = NULL;
}

PSSDTable getSSDT() {

	return (PSSDTable)((PUCHAR)KeServiceDescriptorTable + 0x40);
}

ULONG getSSDTFuntionServiceIndex(char* funName) {
	ULONG64 funcAddr = exportFuntionByName((char*)gMapNtdll, funName);
	if (!funcAddr) return -1;
	DbgPrintEx(77, 0, "[db]:serviceNum---%x\r\n", *((PSHORT)(funcAddr + 1)));
	DbgBreakPoint();
	return *((PSHORT)(funcAddr + 1));
}

ULONG_PTR SetSSDTHook(char* funName, ULONG_PTR newFunction) {
	PSSDTable ssdTable = getSSDT();
	ULONG index = getSSDTFuntionServiceIndex(funName);
	if (index == -1) return -1;
	DbgBreakPoint();
	//这里可能还需要判断是在第一张表还是第二张表里
	PULONG_PTR funAddr = ssdTable->ssdt.Base[index];
	ULONG cr0Value = wpOff();
	ssdTable->ssdt.Base[index] = newFunction;
	wpOn(cr0Value);

	return funAddr;

}
ULONG wpOff() {
	ULONG cr0 = __readcr0();
	_disable();
	__writecr0(cr0 & (~0x10000));
	return cr0;
}
VOID wpOn(ULONG cr0) {
	__writecr0(cr0);
	_enable();
}

driver.c

#include <ntifs.h>
#include "ssdt.h"
ULONG_PTR g_oldFun = NULL;

typedef NTSTATUS (NTAPI *OpenProcessProc)(
	OUT PHANDLE ProcessHandle,
	IN ACCESS_MASK DesiredAccess,
	IN POBJECT_ATTRIBUTES ObjectAttributes,
	IN PCLIENT_ID ClientId OPTIONAL
);

NTSTATUS NTAPI myOpenProcess(
	OUT PHANDLE ProcessHandle,
	IN ACCESS_MASK DesiredAccess,
	IN POBJECT_ATTRIBUTES ObjectAttributes,
	IN PCLIENT_ID ClientId OPTIONAL
) {
	DbgPrintEx(77, 0, "[db]:ZwOpenProcess HOOK.....\r\n");

	OpenProcessProc fun = (OpenProcessProc)g_oldFun;
	return fun(ProcessHandle,DesiredAccess,ObjectAttributes,ClientId);
}


VOID DriverUnload(PDRIVER_OBJECT pDriver)
{
	SetSSDTHook("ZwOpenProcess", g_oldFun);
	SsdtDestory();

	//延时让函数执行完;
	LARGE_INTEGER time = { 0 };
	time.QuadPart = -10000 * 3000;
	KeDelayExecutionThread(KernelMode, FALSE, &time);

}
NTSTATUS DriverEntry(PDRIVER_OBJECT pDriver, PUNICODE_STRING pReg)
{
	SsdtInit();
	g_oldFun = SetSSDTHook("ZwOpenProcess", myOpenProcess);
	pDriver->DriverUnload = DriverUnload;
	return STATUS_SUCCESS;
}

本文采用署名-非商业性使用-相同方式共享 4.0 国际许可协议，转载请注明出处。

系统调用

API函数的调用过程（3环部分）

1、Windows API

1.1 Application Programming Interface，简称 API 函数。

1.2 Windows有多少个API?

1.3 几个重要的DLL

2、分析ReadProcessMemory

API函数的调用过程(3环进0环)

1、_KUSER_SHARED_DATA

2、0x7FFE0300

3、进0环需要更改哪些寄存器？

4、中断门进0环

4.1 INT 0x2E进0环

5、快速调用进0环

5.1 sysenter进0环

6、总结

6.1 API通过中断门进0环

6.2 API通过sysenter指令进0环

进0环前保存现场

_Trap_Frame结构

_ETHREAD结构

_KTHREAD结构

_KPCR结构

_NT_TIB结构

_KPRCB结构

系统服务表

1、SystemServiceTable 系统服务表

2、SystemServiceTable 系统服务表位置

3、判断要调用的函数在哪个表

4、找到要执行的函数与参数个数

SSDT

1、SystemServiceTable 系统服务表

2、如何访问系统服务表呢？

案例

SSDTHOOK
